Good Price Semi-auto SMT Assembly Line
Good price SMT line, SMD line, SMT assembly line, PCB assembly line, SMD assembly line, led production line, LED bulb production line, SMT assembly line cost, with SAMUNG pick and place machine.
▽ ETA Vietnam customer - LED productio line
❙ Introduce of SMT Production Line
1. Hanwha High speed pick and palce machine SM series
| Model | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
2. SMT Stencil Printer ( full-auto)
| Model | ETA-4034 | ETA-1200(LED) | ETA-1500(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 1500*750 | 470*370 ~ 1800*750 |
| PCB Size(mm) | 50*50 ~ 400*340 | 80*50 ~ 1200*350 | 80*50 ~ 1500*350 |
| PCB Thickness | 0.4-6mm | ||
| Transport Height | 900±20mm | ||
| Repeate Accuracy | +-0.01mm | ||
| Printing Accuracy | +-0.025mm | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PLC Control | ||
| Dimension(mm) | 1220*1355*1500 | 2200*1200*1500 | 2500*1220*1500 |
3. ETA Reflow oven
| Model | E8 | E10 |
| Dimension (L*W*H)mm | 5000x1250x1490 | 5800x1250x1490 |
| Weight | Approx. 1600KG | Approx. 1800KG |
| Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 |
| Length Of Heating Zones | 3121mm | 3891mm |
| Rail Width Adjustment | M(option:A) | |
| Exhaust Volume | 10M3/minx2 Exhausts | |
| Control System | PLC+Computer | |
| Temperature Control Method | PID + SSR | |
| Transmission Agent | Chain + Mesh | |
| Electric Supply Required | 3 phase,380V 50/60Hz | |
| Power For Warm Up | 55KW | 64KW |
| Power Consumption | 8KW | 12KW |
| Warming Time | Approx.25 minute | |
| Temp. Setting Range | Room Temp.-- 300°C | |
| Conveyor Height | 900+/-20mm | |
| Conveyor Speed Range | 300~2000mm/mi | |
| Fixed Rail Side | Front Fixed (Option:Rear Fixed) | |
| Cooling Method | Forced-Air Motor and fan (Standard) | |
❙ Customer Factory

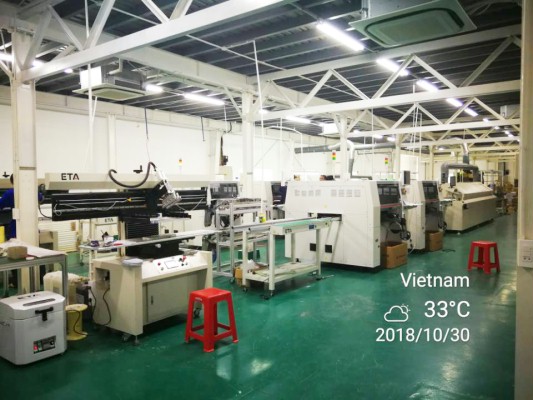

▽ ETA Vietnam customer - 2 LED production line with 4 Hanwha pick and place machine

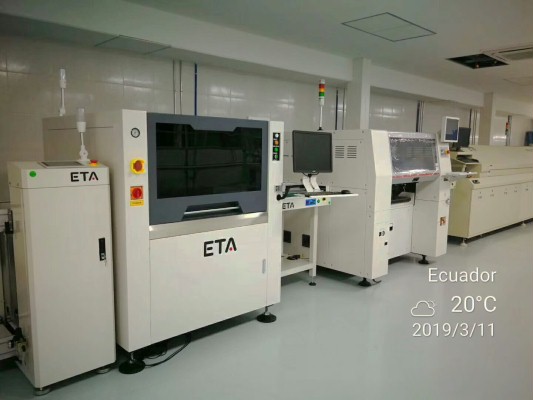

▽ ETA Ecuador customer - LED TV production line

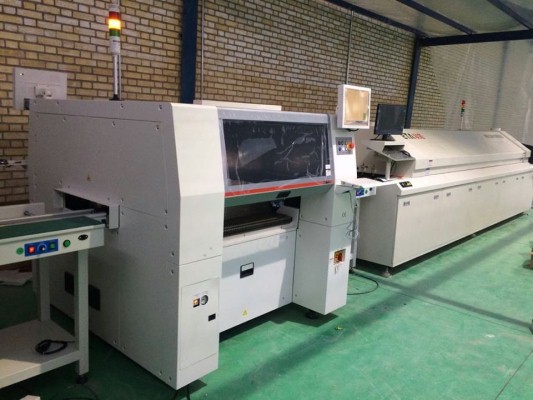

▽ ETA Iran Customer - Samsung SMT line
❙ Company Proflie
ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.
We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, HANWHA/SAMSUNG, YAMAHA, PANASONIC brands.
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA Exhibition
❙ ETA Products Certificate
❙ ETA Global Service
❙ Customers' Feedback
❙ FAQ
If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.
❙ SAMSUNG SMT Line Video
