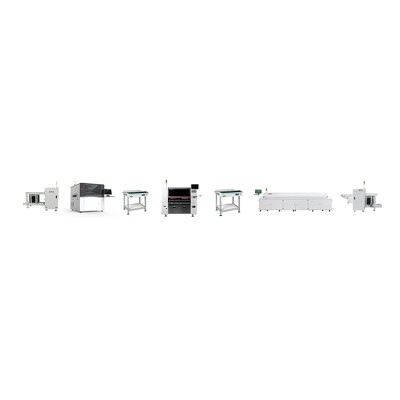

Good Price SMT Production Line
Fully automation SMT smart factory high speed SMT assembly line, LED production line, Hanwha SMT line, for PCB assembly.
❙ Hanwha Pick and Place Machine
| Model | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
❙ SMT Stencil Printer
| Model | ETA-4034 | ETA-5151 | ETA-6561 | ETA-1500(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 | 470*370 ~ 1800*750 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 | 80*50 ~ 1500*350 |
| TransportDirection | Left-Right; Right-Left; Left-Left; Right-Right | |||
| Support System | Magnetic Pin/Up-down table adjusted/support block | |||
| Clamping System | Side clamping, vacuum nozzle,Automation retractable Z pressure | |||
| Printer Head | Two independent motorised printhead | |||
| Squeegee Type | Stainless steel(standard),plastic | |||
| Cleaning System | Dry, Wet, Vacuum | |||
| Inspection | 2D Inspection(Standard) | |||
| Power Supply | AC:220±10%,50/60HZ,3Kw | |||
| Control Method | PC Control | |||
| Dimension(mm) | 1220*1355*1500 | 1220*1530*1500 | 1330*1530*1500 | 2500*1220*1500 |
| Weight | Approx:1250kg | Approx:1300kg | Approx:1300kg | Approx:1800kg |
| Model | ETA-5134 | ETA-6534 | ETA-1200(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 |
| Dimension(mm) | 1220*1355*1500 | 1330*1530*1500 | 2200*1200*1500 |
| Weight | Approx:1250kg | Approx:1300kg |
Approx:1500kg |
❙ SMT Reflow Oven
| Model | Lyra 622 | Lyra733 | ||
| Dimension (L*W*H)mm | 5040x1450x1450 | 5800x1450x1450 | ||
| Machine Weight | Approx. 2200KG | Approx. 2400KG | ||
| Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 | ||
| Length Of Heating Zones | 3030mm | 3730mm | ||
| Number of Cooling Zones | 2 | 3 | ||
| Control System | PLC+Computer | PLC+Computer | ||
| Transmission Agent | Chain + Mesh | Chain + Mesh | ||
| Max.Width Of PCB | 460mm | 460mm | ||
| Power For Warm Up | 45kw | 55kw | ||
| Power Consumption | 8kw | 10kw | ||
| Conveyor Height | 900+/-20mm | 900+/-20mm | ||
| Model | A600 | A600D | A800 | A800D |
| Dimension (L*W*H)mm | 3400x800x1350 | 4150x850x1350 | ||
| Weight | Approx.739KG | Approx.850KG | ||
| Number Of Heating Zones | Top6/Bottom6 | Top8/Bottom8 | ||
| Length Of Heating Zones | 2300mm | 2600mm | ||
| Power For Warm Up | 12kw | 15kw | ||
| Power Consumption | 5kw | 6kw | ||
| Transmission Agent | Mesh | Mesh+Rail | Mesh | Mesh+Rail |
| Fixed Rail Side | N/A | Front (Option:Rear) | N/A | Front (Option:Rear) |
| Control System | Instrument | PLC+Computer | Instrument | PLC+Computer |
❙ Customer Factory
▽ ETA Bulgaria customer - Battery Chargers and Adapters SMT production line
▽ ETA USA customer - LED production line
❙ Company Profile
ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.
We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, HANWHA/SAMSUNG, YAMAHA, PANASONIC brands.
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA SMT Machine Exhibition
❙ SMT Line Machine Certificate
❙ ETA Global Service
❙ Customers' Feedback
❙ FAQ
If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.
