LED Production Line
ETA is the Full SMT line, SMT assembly line, SMT production line, LED production line, JUKI SMT line solution provider. we offers PCB assembly line solutions and technical support and oversea service.
❙ JUKI RS-1R Pick and Place Machine
| Model | JUKI RS-1R | |||
| Conveyor Specification | standard |
150mm conveyor extensions, upstream and downstream |
250mm conveyor extensions, upstream and downstream |
|
| Boar Size | minimum | 50*50mm | ||
| 1 buffer | 650*370mm(single clamping) | |||
| 950*370mm(double clamping) | 1,100*370mm(double clamping) | 1,200*370mm (double clamping) | ||
| 3 buffers | 360×370mm | 500*370mm | 600*370mm | |
| Component Height | 25mm | |||
| Component Size | 0201*1 ~74mm /150*50mm | |||
| Placement Speed | Optimum | 47,000CPH | ||
| IPC9850 | 31,000CPH | |||
| Placement Accuracy | ±35μm(Cpk≥1) | |||
| Feeder Inputs | max.112*2 | |||
❙ SMT Stencil Printer
| Model | ETA-4034 | ETA-5151 | ETA-6561 | ETA-1500(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 | 470*370 ~ 1800*750 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 | 80*50 ~ 1500*350 |
| TransportDirection | Left-Right; Right-Left; Left-Left; Right-Right | |||
| Support System | Magnetic Pin/Up-down table adjusted/support block | |||
| Clamping System | Side clamping, vacuum nozzle,Automation retractable Z pressure | |||
| Printer Head | Two independent motorised printhead | |||
| Squeegee Type | Stainless steel(standard),plastic | |||
| Cleaning System | Dry, Wet, Vacuum | |||
| Inspection | 2D Inspection(Standard) | |||
| Power Supply | AC:220±10%,50/60HZ,3Kw | |||
| Control Method | PC Control | |||
| Dimension(mm) | 1220*1355*1500 | 1220*1530*1500 | 1330*1530*1500 | 2500*1220*1500 |
| Weight | Approx:1250kg | Approx:1300kg | Approx:1300kg | Approx:1800kg |
| Model | ETA-5134 | ETA-6534 | ETA-1200(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 |
| Dimension(mm) | 1220*1355*1500 | 1330*1530*1500 | 2200*1200*1500 |
| Weight | Approx:1250kg | Approx:1300kg | Approx:1500kg |
❙ ETA Reflow oven
| Model | E8 | E10 |
| Dimension (L*W*H)mm | 5000x1250x1490 | 5800x1250x1490 |
| Weight | Approx. 1600KG | Approx. 1800KG |
| Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 |
| Length Of Heating Zones | 3121mm | 3891mm |
| Rail Width Adjustment | M(option:A) | |
| Exhaust Volume | 10M3/minx2 Exhausts | |
| Control System | PLC+Computer | |
| Temperature Control Method | PID + SSR | |
| Transmission Agent | Chain + Mesh | |
| Electric Supply Required | 3 phase,380V 50/60Hz | |
| Power For Warm Up | 55KW | 64KW |
| Power Consumption | 8KW | 12KW |
| Warming Time | Approx.25 minute | |
| Temp. Setting Range | Room Temp.-- 300°C | |
| Conveyor Height | 900+/-20mm | |
| Conveyor Speed Range | 300~2000mm/mi | |
| Fixed Rail Side | Front Fixed (Option:Rear Fixed) | |
| Cooling Method | Forced-Air Motor and fan (Standard) | |
❙ Customer Factory

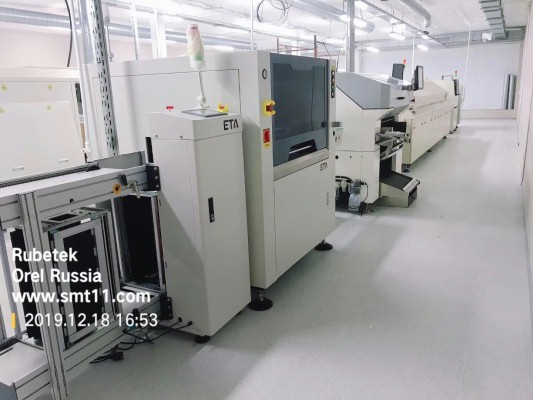

▽ ETA Russia customer - JUKI SMT Assembly Line

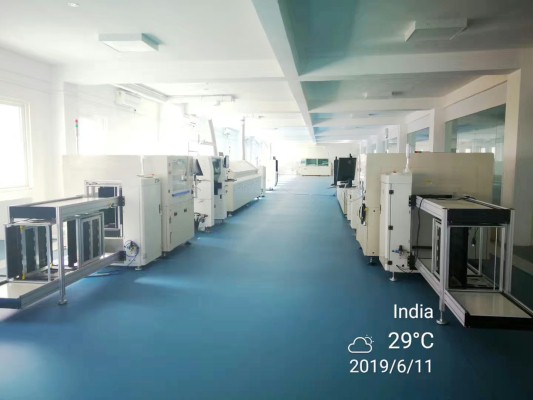

▽ ETA India customer - 2 JUKI SMT line

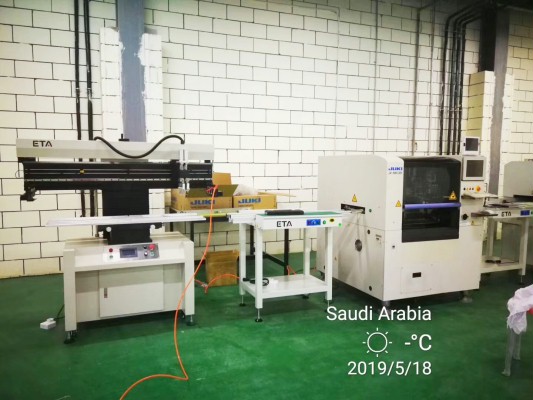

▽ ETA Saudi Arabia customer - JUKI SMT production line
❙ Company Profile
ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.
We also is the partner of JUKI pick and place machine and Hanwha/Samsung pick and place machine, can provide the best SMT technical services and accessories support for JUKI, HANWHA/SAMSUNG, YAMAHA, PANASONIC brands.
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA SMT Line Exhibition

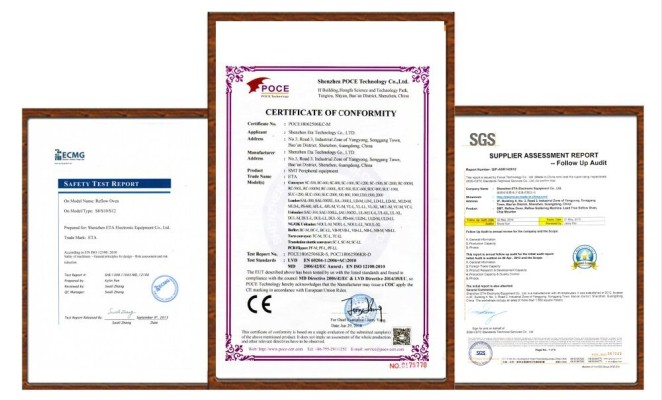

❙ SMT Line Machine Certificate
❙ ETA Global Service
❙ Customers' Feedback
❙ FAQ
If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.
❙ JUKI SMT Line Video
